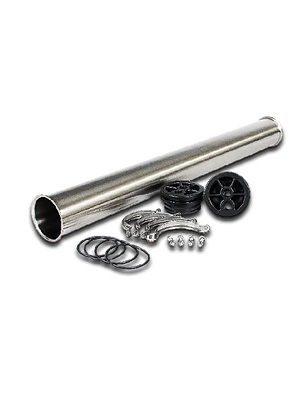

Stainless Steel Membrane Housings & Parts

EWP-USA’s Stainless Steel (SST) Membrane Housings are universally accepted for most water systems and are designed for direct connection to most RO membranes. SST housings can withstand temperatures up to 120° F and are not affected by UV Rays or sunlight. These housings are lighter and easier to handle than most FRP housings with equivalent pressure ratings. Aesthetically, the highly polished housings have a smooth and sleek look. Unlike FRP, these housings do not warp and provides years of service. Every housing comes with all the parts necessary for use, this includes the seals, end caps, clamps, straps, and saddles.

Applications

EWP-USA’s Stainless Steel (SST) Membrane Housings meets the needs of most demanding applications:

  • Diameters: 2.5″/4″/8" Length: 21″/40″ membrane housing

  • The material of construction of our membrane housings is SS304 or SS316L

  • We provide connections available with NPT/BSP thread, tri-clamp, Victaulic, and Flange.

  • Our housings F/C port can be with End entry port of side entry port.

  • Finish with mechanical polish, available with electropolish or Poly coat. (Ra<0.2)

Our membrane housing application in the industry is as below:

  • Commercial Water

  • Treatment Pharmaceutical water treatment

  • Dialysis water treatment

  • Dairy Products Food and Beverage

  • Mining wastewater treatment

  • Special separation

  • Wine and Brew

2.5" Stainless Steel Membrane Housing

304SST, 2.5"x21", 21" element, 300PSI, End port, 1/4" FNPT F/C Port, 1/4" FNPT Perm Port, clamps, O-rings, straps, and saddles (304 SST, GB Standard)
304SST, 2.5"x40", 1 element, 300PSI, End port, 3/8" FNPT F/C Port, 3/8" FNPT Perm Port, clamps, O-rings, straps, and saddles..(304 SST, GB Standard)
304SST, 2.5"x21", 21" element, 300PSI, End port, 3/8" FNPT F/C Port, 3/8" FNPT Perm Port, clamps, O-rings, straps, and saddles..(304 SST, GB Standard)
304SST, 2.5"x40", 1 element, 300PSI, End port, 1/4" FNPT F/C Port, 1/4" FNPT Perm Port, clamps, O-rings, straps, and saddles..(304 SST, GB Standard)

4" Stainless Steel Membrane Housing

 304SST, 4"X120", 3 elements, 300 PSI, End port, 1/2" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles
304SST, 4"x120", 3 elements, 300 PSI, End port, 3/4" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles
304SST, 4"X120", 3 elements, 300 PSI, End port, 1/2" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles
Membrane Housing, 304SST, 4"x120", 3 elements, 300 PSI, End port, 3/4" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles
40" SST housing, 1 element, 4", 300 PSI, end port, NYLON end caps - 1/2" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles
40" SST housing, 1 element, 4", 300 PSI, end port, NYLON end caps - 3/4" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles (304 SST, US Standard)
40" SST housing, 1 element, 4", 300 PSI, end port, ABS end caps - 3/4" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles (304 SST, US Standard)
 316SST, 4"X40", 300 PSI, Nylon End port, 1/2" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles
304SST 4"X 80", 2 elements, 300 PSI, End port, 1/2" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles (304 SST, US Standard)
316SST, 4"x40", 300 PSI, Nylon End port, 3/4" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles
304SST, 4"x80", 2 elements, 300 PSI, End port, 3/4" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles (304) SST, US Standard)
316SST, 4"X40", 300 PSI, ABS End port, 3/4" FNPT F/C Port, 1/2" FNPT Perm Port, clamps, O-rings, straps, and saddles

8" Stainless Steel Membrane Housing

304SST, 8"x40", end ports - 1-1/2" vic, 1" FNPT perm ports clamps - seals - straps & saddle
316SST, 8"x40", end ports - 1-1/2" vic, 1" FNPT perm ports clamps - seals - straps & saddle
304SST, 8"x40", Side ports - 1-1/2" vic, 1" FNPT perm ports clamps - seals - straps & saddle
316SST, 8"x40", Side ports - 1-1/2" vic, 1" FNPT perm ports clamps - seals - straps & saddle

2.5" Stainless Steel Membrane Housing Parts

2.5” Nylon End Cap, End Port 1/4" FNPT F/C Port x 1/4” FNPT Perm Port, Clamp Hardware: 304 SST, O-Ring: Silicone
2.5” Nylon End Cap, End Port 3/8" FNPT F/C Port x 3/8” FNPT Perm Port, Clamp Hardware: 304 SST, O-Ring: Silicone
2.5” Nylon End Cap, Head Seal O-Ring: Silicone
2.5” Nylon End Cap, Permeate Port O-Ring: Silicone
2.5” Nylon End Cap, Clamp Hardware with bolts: 304SST
2.5” 304SST Membrane Housing, Strap and Saddle Kit

4" Stainless Steel Membrane Housing Parts

4” Nylon End Cap, End Port 3/4" FNPT F/C Port x 1/2” FNPT Perm Port, Clamp Hardware: 304 SST, O-Ring: Silicone
4” Nylon End Cap, Head Seal O-Ring: EPDM
4” SST End Cap, Sanitary Clamp Hardware with bolts: 316SST
4” Nylon End Cap, End Port 1/2" FNPT F/C Port x 1/2” FNPT Perm Port, Clamp Hardware: 304 SST, O-Ring: Silicone
4” ABS End Cap, End Port 3/4" FNPT F/C Port x 1/2” FNPT Perm Port, Clamp Hardware: 304 SST, O-Ring: Silicone
4” Nylon End Cap, Permeate Port O-Ring: EPDM
4” 304SST Membrane Housing, Strap and Saddle Kit
4” Nylon End Cap, Clamp Hardware with bolts: 304SST
