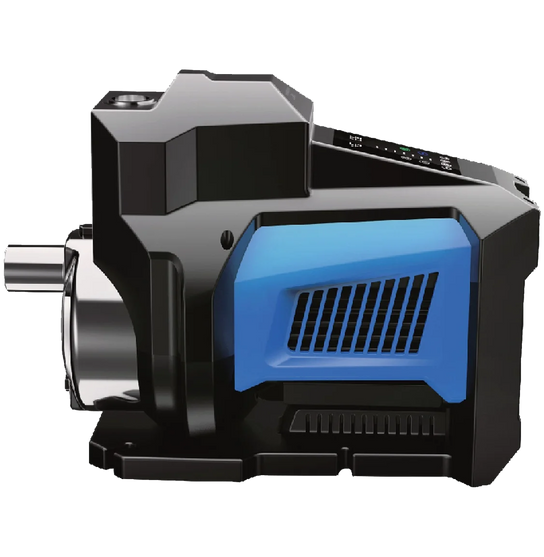

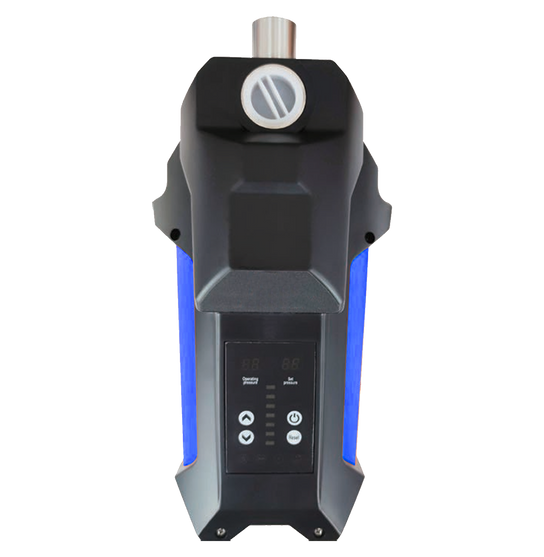

PM Series 750S
PERMANENT MAGNET VARIABLE FREQUENCY PUMP
TECHNICAL DATA
Rated Flow [m³/h]: 3
Max Flow [m³/h]: 5.5
Max Head (m): 50
Rated Rated Head (m): 28
Motor power [kW]: 0.85
Voltage (V): 160 ~ 260V 50/60Hz
Piping (mm): 25
Maximum Suction Range (m): 9
CNP PM Series multi-stage centrifugal permanent magnet frequency conversion pump, the pump head is made of thickened stainless steel, which can effectively prevent the production of rust water, thus enjoy the usage of clean water. When the water is stopped, the microcomputer control system will automatically detect and control the motor to slow down and stop. Intelligent constant pressure water supply, high efficiency, energy saving, fulfill the water requirement of different customers.
Features:
Permanent magnet frequency – Frequency conversion constant voltage, low energy consumption
Low noise pressurization – High efficiency and low noise
Energy conservation and environmental protection – Energy saving, excellent and efficient
Multiple protection – Multiple protection to ensure safety
Intelligent operation – Intelligent switch, easy to operate
CNP PM Product Dimension

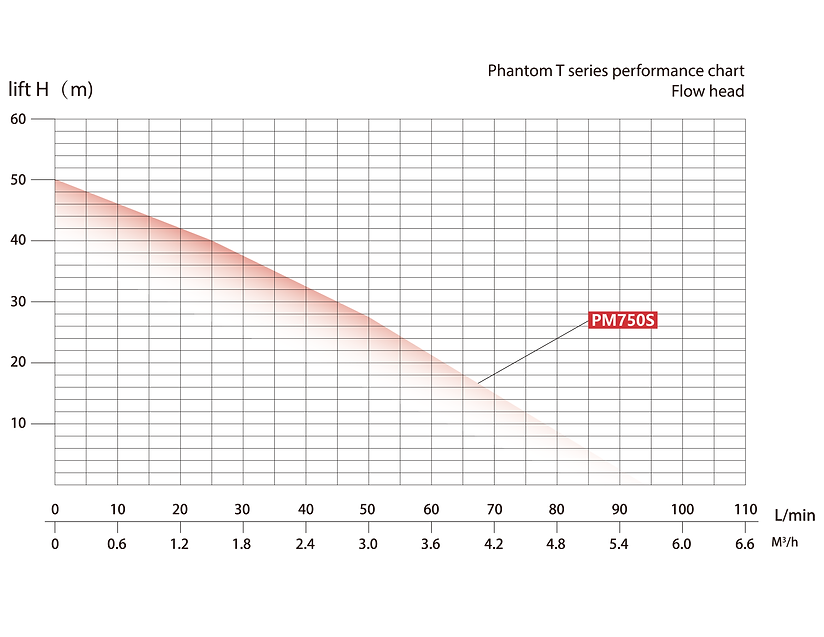

CNP PM Technical Parameters Curve Chart

CNP PM Diagram
